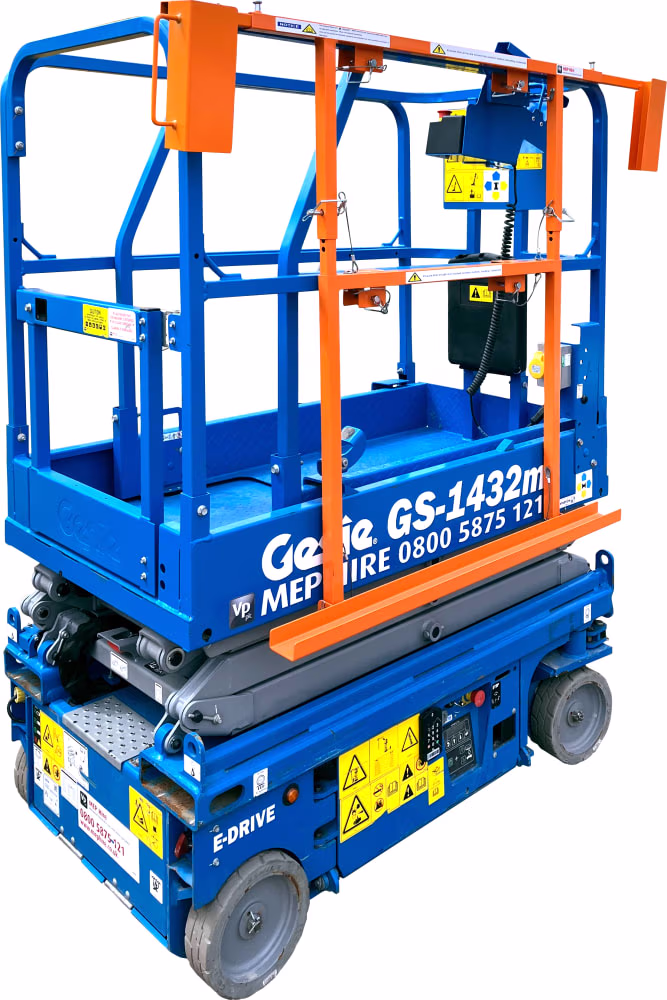

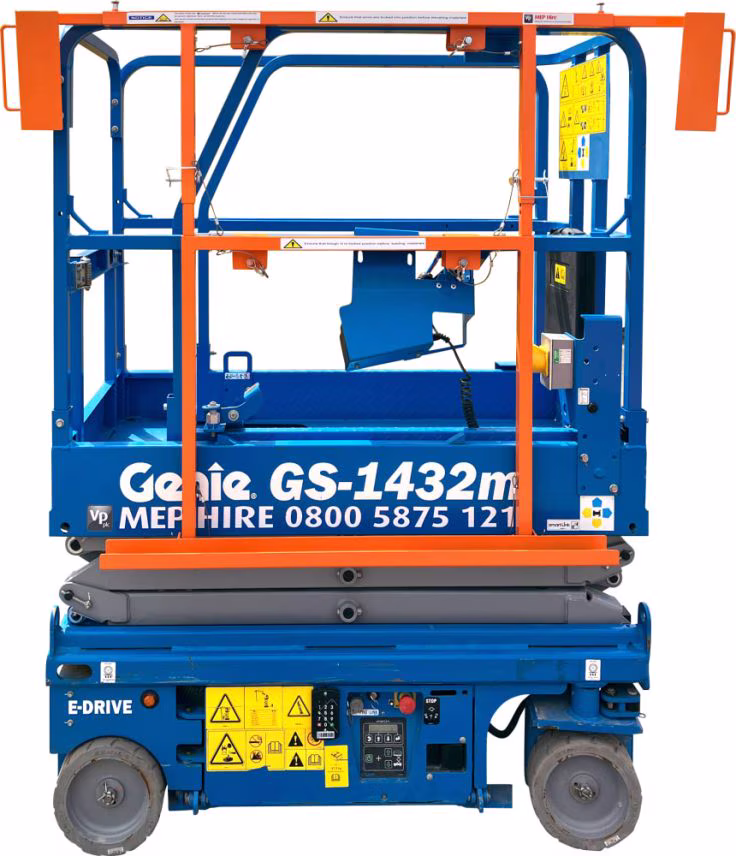

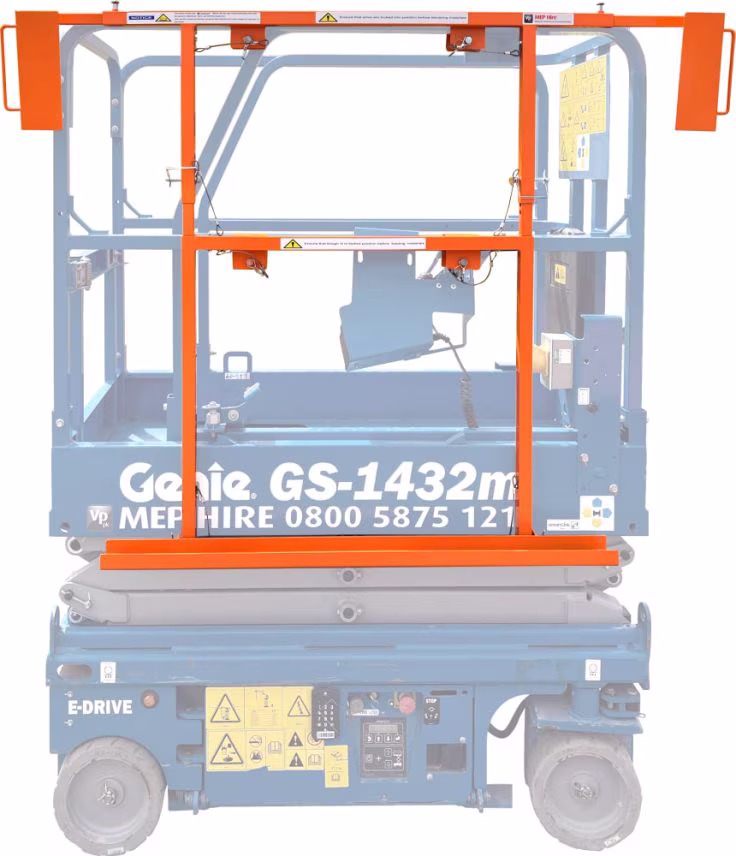

Panel Attachment for Genie GS™-1432m Micro Scissor Lift

A panel attachment with sliding brackets to safely secure boards whilst using the Genie GS™-1432m Micro Scissor Lift.

Increases efficiency on-site, whilst improving safety
Only compatible with the Genie GS™-1432m Micro Scissor Lift.

Please note: Images are for illustration purposes only. Actual product supplied may differ.

Hire from only £95.00 per week (Ex VAT)

Panel Attachment for Genie GS™-1432m Micro Scissor Lift

A panel attachment with sliding brackets to safely secure boards whilst using the Genie GS™-1432m Micro Scissor Lift.

Increases efficiency on-site, whilst improving safety
Only compatible with the Genie GS™-1432m Micro Scissor Lift.

Product Details

Technical Specifications

Product Detail	Specification
Product Weight	14.1 kg
Trough Width	65 mm
Maximum Permitted Load (SWL)	60 kg
Maximum Permitted Windspeed	0 mph (Indoor use only)
Maximum Material Width	1700 mm
Attachment Height (Maximum)	1275 mm
Attachment Height (Closed)	1135 mm
Attachment Width (Closed)	1130 mm
Maximum Permitted Side Load Force	329.07 pa*

Calculation based on the lifting of three ‘Gyproc Core board’ 598×3000 mm panels with a total weight of 50.1 kg plus the weight of the attachment (14.1 kg)

Documents

Key Features

MEP Hire, in collaboration with the manufacturer Safe MEWP, has designed this panel attachment for the Genie GS™-1432m Micro Scissor Lift to support the safe installation of boards and sheets across the job site.

This additional safety feature, created from customer demand, increases safety on-site when lifting board and sheet materials
Sliding brackets remove the need for chains and ties, reducing the time it takes to load materials
Supports on-site best practices and adherence to site safety obligations
For use with the Genie GS™-1432m Micro Scissor Lift only.

Please note: It is the responsibility of the operator/user to ensure that the weights and dimensions of any panels to be lifted are obtained and the side loading force calculated correctly. The calculations must factor in any external factors that may be site specific.

Product Detail	Specification
Product Weight	14.1 kg
Trough Width	65 mm
Maximum Permitted Load (SWL)	60 kg
Maximum Permitted Windspeed	0 mph (Indoor use only)
Maximum Material Width	1700 mm
Attachment Height (Maximum)	1275 mm
Attachment Height (Closed)	1135 mm
Attachment Width (Closed)	1130 mm
Maximum Permitted Side Load Force	329.07 pa*

Calculation based on the lifting of three ‘Gyproc Core board’ 598×3000 mm panels with a total weight of 50.1 kg plus the weight of the attachment (14.1 kg)
